| Handle Clamp Assembly & Alignment |
|---|
| The Support may be positioned anywhere along the two Front Bolts in order to center Film-O-Clean within the film path.
The location of the Support upon the two Front Bolts determines how the remainder of the Clamp will be assembled. The goal is to "lock" the Support on the two front bolts using four small nuts. If the Support is adjacent to the clamp, omit the nuts on that side. |
 |

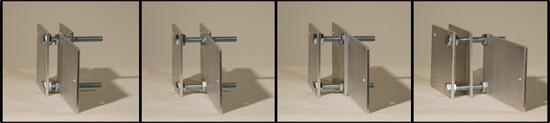

| The second picture represents the most common configuration, and the following instructions detail the assembly of this arrangement.
8. Remove Film-O-Clean from the Adaptor; Remove the Handle Clamp and remove the large nuts from the bolts. |
 |

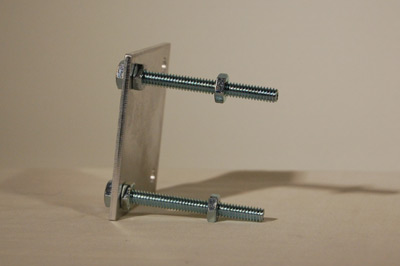

| 9. Thread one small nut on each front bolt and position left of the Support location.
10. Place the Support on the front bolts against the small nuts; then place the Right Clamp half on the front bolts against the Support. Note: The Clamp sides must both be vertical. If projector handle is tapered, size Clamp to the thickest section of handle. |
