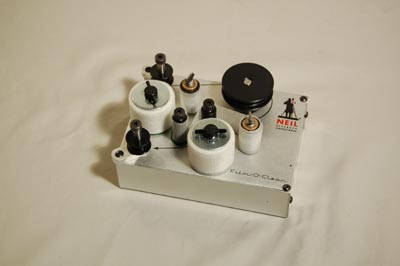

| Cleaning Media Installation |
|---|
| 10. Place the Plastic Take-Up Core back on the Take-Up Spindle. Make certain the core is fully seated on the Take-Up Spindle. |
 |
| 11. Tighten the Take-Up Spindle thumbscrew firmly, but do not over-tighten.
12. Rewind any slack back onto the Feed Spindle.
|
- Loosely wound Cleaning Media will "cinch" on the core making accurate tensioning impossible. Ensure the Cleaning Media is wound tightly on the Plastic Core.
- Verify Cleaning Media advances properly when Drive Wheel is engaged. Tension must not be excessive or the Cleaning Media will not advance properly.

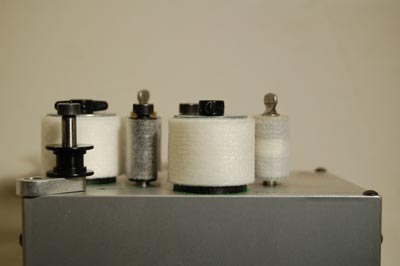

- Ensure the Cleaning Media is correctly aligned to obtain uniform TakeUp (see photo)
|
|
 |
|
