Cleaning Media Installation

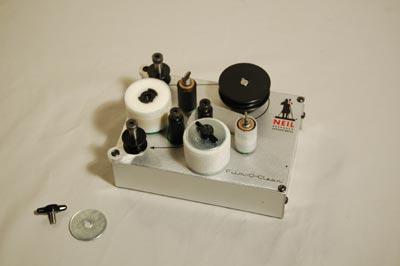

1. Remove the T-Screw and large washer from the Feed Spindle.

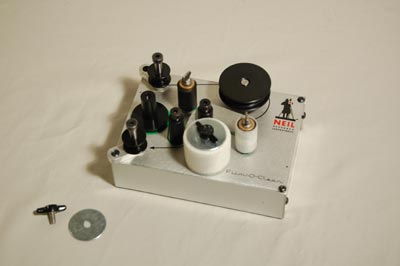

2. Place a roll of Cleaning Media, "notched" end topmost, onto the Feed Spindle.
3. Replace the large washer and T-Screw back on the Feed Spindle.
4. Use T-Screw to properly tension Cleaning Media.

Important: Ensure the Cleaning Media is taut with no slack, requiring gentle force to unwind. Excessive tension will cause the mechanism to "bind" and Cleaning Media will not advance properly.
